YZPST-BTA12-600SW
Dica: inclua o número da peça, a tensão/corrente alvo e o ambiente de aplicação.
Downloads e arquivos técnicos
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
Estrutura de mesa única (Single Mesa),
Processo de passivação com vidro em placa,
Estabilidade de tensão
Capacidade de resistência a fortes surtos de corrente
Modelo aplicável: BTA12
Principais aplicações
Máquina de lavar, alisador de cabelo
Relé de estado sólido, controle de velocidade de motor AC

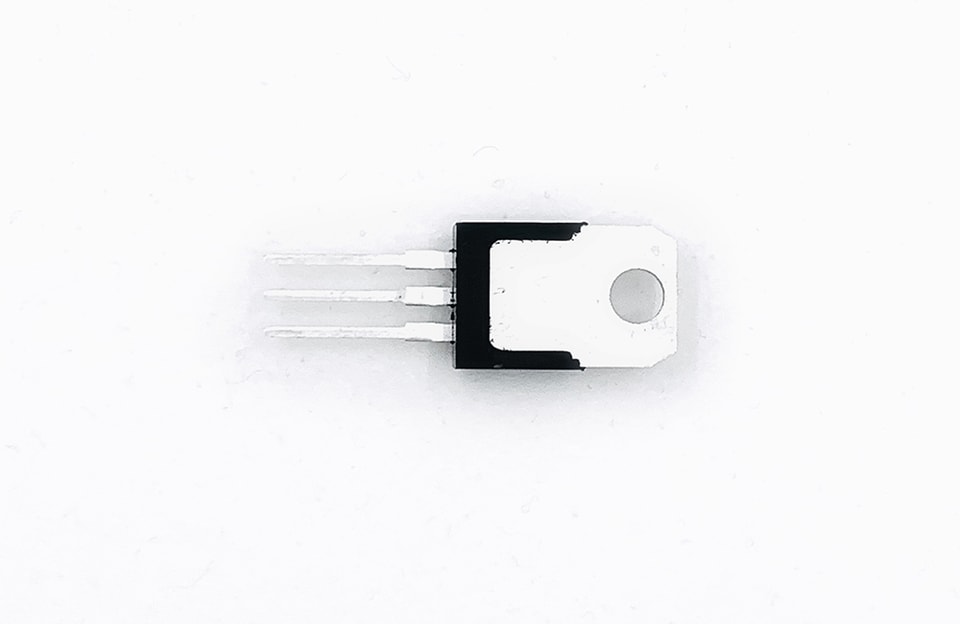

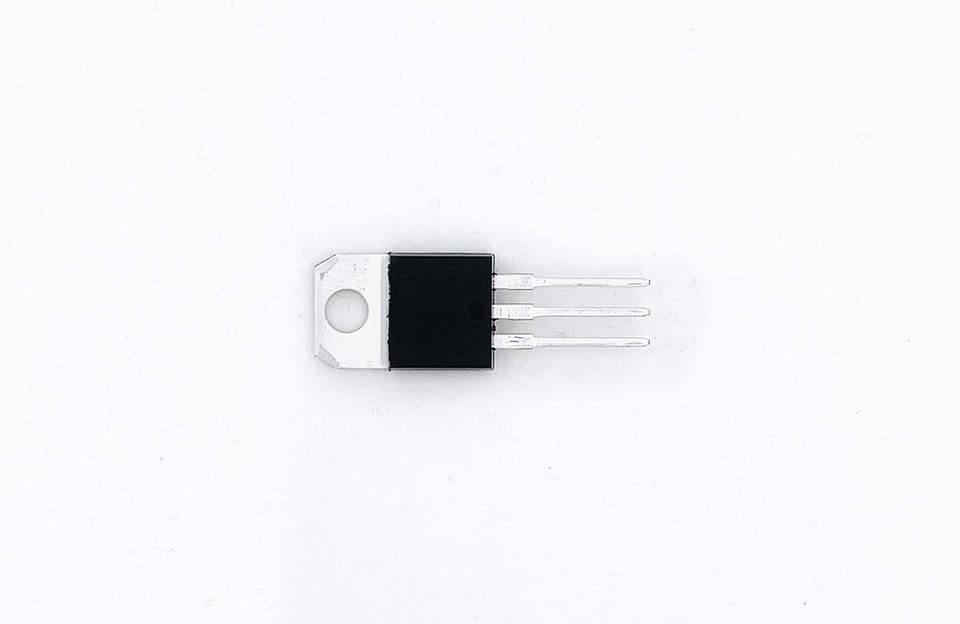

Encapsulamento
TO-220A
Símbolo | Valor | Unidade |
IT(RMS) | 12 | A |
VDRM / VRRM | 600/800 | V |
VTM | 1.55 | V |
Símbolo | Parâmetro | Valor | Unidade |
ITSM | Pico de corrente de surto não repetitivo em condução Corrente (tp=10 ms) | 115 | A |
I²t | (tp=10 ms) | 70 | A²s |
dI/dt | IG=2IGT，tr≤100ns,Tj=125℃ | 50 | A/μs |
IGM | Corrente de gate de pico (tp=20 µs) | 4 | A |
PG(AV) | Potência média do gate | 1 | W |
Tstg Tj | Temperatura de armazenamento Temperatura de junção em operação | -40--+150 -40--+125 | ℃ |
Símbolo | Parâmetro | Valor | Unidade | |
Rth (j-c) | Junção para a caixa | TO-220A | 2.3 | ℃/W |
TO-220B/TO-220C | 1.4 | |||
TO-220F | 3.9 |
Símbolo | Condições de teste | Valor | Unidade | ||||||
TW | SW | CW | BW | C | B | ||||
IGT | VD=12V, RL=30Ω | ⅠⅡⅢ | ≤5 | ≤10 | ≤25 | ≤50 | ≤25 | ≤50 | mA |
Ⅳ | ---- | ---- | ---- | ---- | ≤50 | ≤100 | |||
IDRM | VD=VDRM | Tj=25℃ | ≤5 | μA | |||||
Tj=125℃ | ≤1 | mA | |||||||
IRRM | VD=VRRM | Tj=25℃ | ≤5 | μA | |||||
Tj=125℃ | ≤1 | mA | |||||||
IL | IG=1.2IGT | ⅠⅢ | ≤10 | ≤25 | ≤50 | ≤70 | ≤40 | ≤50 | mA |
Ⅳ | ---- | ---- | ---- | ---- | ≤40 | ≤50 | |||
Ⅱ | ≤15 | ≤30 | ≤60 | ≤80 | ≤80 | ≤100 | |||
VGT | VD=12V ,RL=30Ω | ≤1.3 | V | ||||||
VGD | VD=VDRM, Tj=125℃RL=3.3KΩ | ≥0.2 | V | ||||||
VTM | ITM=17A,tp=380μs | 1.55 | V | ||||||
IH | VD=12V，IT=200mA | ≤20 | ≤25 | ≤35 | ≤50 | ≤25 | ≤50 | mA | |
dV/dt | VD=67%VDRM, GateOpen, Tj=125℃ | ≥40 | ≥100 | ≥400 | ≥1000 | ≥200 | ≥400 | v/μs | |
A YZPST pode fornecer a seguinte lista de equivalentes de SCR e triac.
2P4M | BT2588 | Q6006 | SCF6C60 | TS820 |
2P6M | BY169 | Q8006 | S6012 | TS420 |
25TTS16 | BT169 | Q6008 | S8012 | TYN612 |
40TPS16 | BT151S | Q8008 | S8016 | TYN616 |
70TPS16 | BT148W | Q6010 | SCF25C60 | TYN816 |
BT148S | Q8010 | S6025 | TYN620 | |
CR08AS | BT151 | Q6016 | S8025 | TYN820 |
C106 | BT152 | Q8016 | SK025 | TYN1025 |
CS30 | BTW69 | Q6025 | S6035 | TYN1225 |
CS45 | BT131 | Q8025 | S8035 | TYN630 |
CS60-16i01 | BT134 | QK025 | SK035 | TYN830 |
BT136 | Q6040 | S6040 | TYN640 | |
MCR100-6 | BCR2PM | Q8040 | S8040 | TYN840 |
MCR100-8 | BTA01 | QK040 | S6055 | T405 |
MCR706 | BTB04 | S8055 | T410 | |
MCR72-6/8 | BTA06 | SK055 | T435 | |
MCR22 | BTB06 | STN1A60 | T805 | |
MAC97A6 | BTA08 | STN1A80 | T810 | |
MAC97A8 | BTB08 | STF4A60 | T835 | |
BT137 | STF6A60 | TMG8C60 | ||
FS0102MA | BTA10 | STF08 | TMF12C60 | |
BTB10 | STF12A60 | T1235 | ||
X0405 | BTA16 | TMG16C60 | ||
X0805 | BTB16 | TIC246 | ||
X0205 | BT139 | T1620 | ||
BTA216 | T1635 | |||
Z00607 | BTA20 | TMG20C60 | ||
Z0103 | BTB20 | T2535 | ||
Z0107 | BTA24 | TMG25CQ60 | ||
Z0405 | BTB24 | |||
Z0409 | BTA140 | |||
BTA26 | ||||
BTB26 | ||||
BTA41 | ||||
BTB41 |
