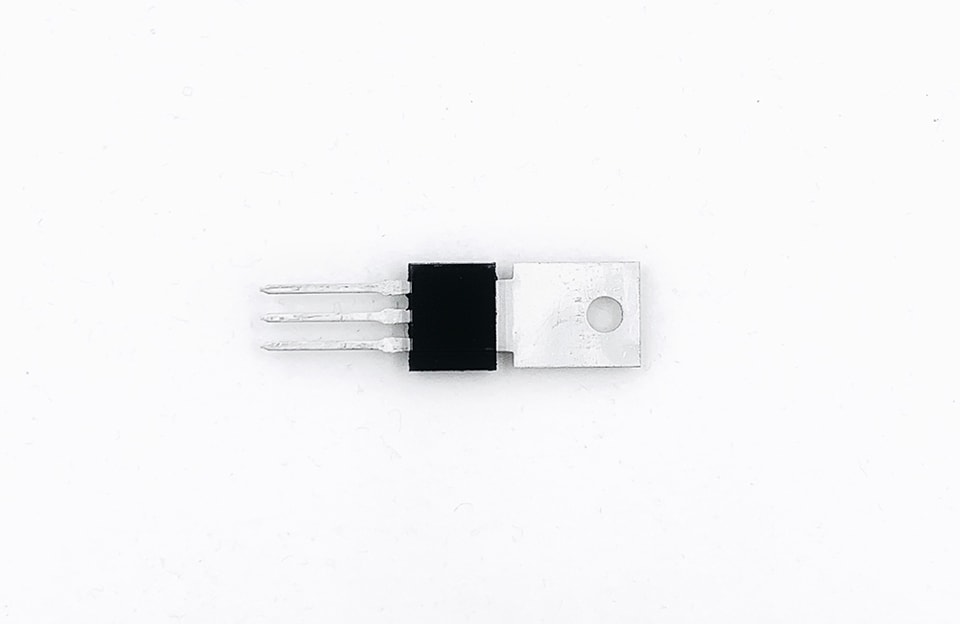

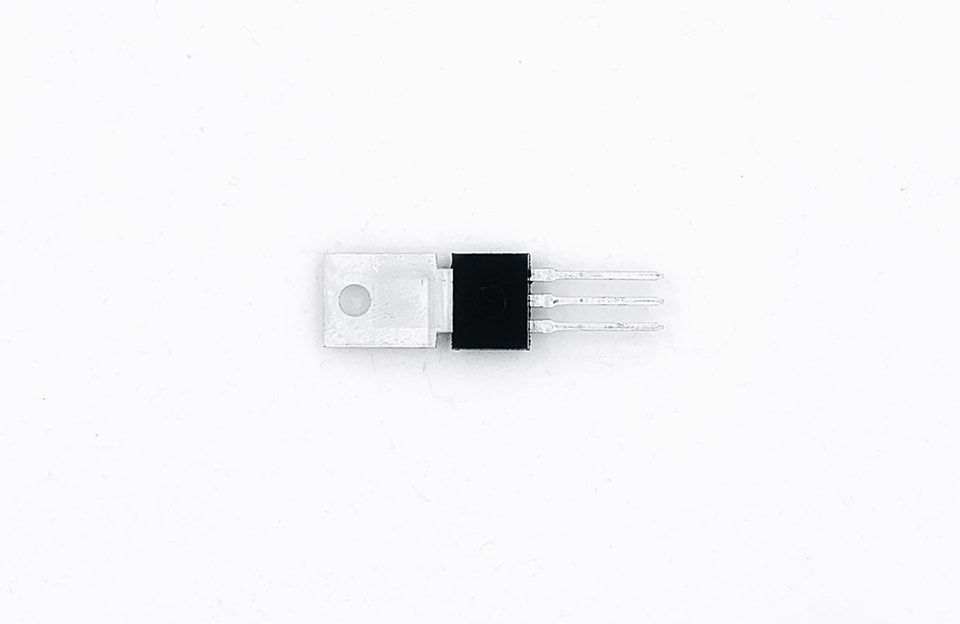

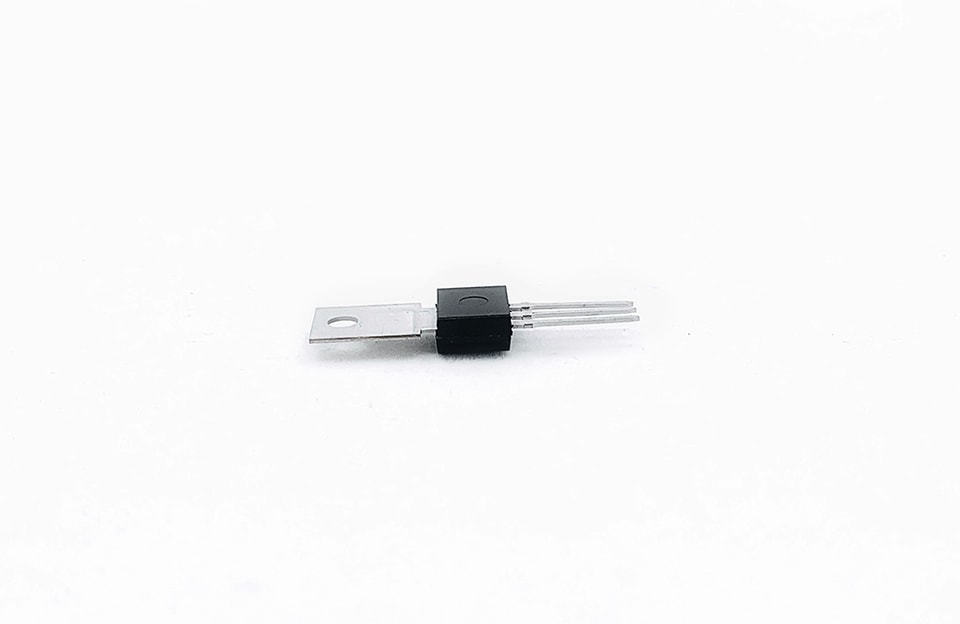

YZPST-X0405(com dissipador de calor)
Dica: inclua o número da peça, a tensão/corrente alvo e o ambiente de aplicação.
Downloads e arquivos técnicos
Graças aos níveis de disparo altamente sensíveis, a série X0405 SCR é adequada para todas as aplicações em que a corrente de gate disponível é limitada, como disjuntores por falha à terra, proteção crowbar contra sobretensão em fontes de alimentação de baixa potência e circuitos de ignição capacitivos.
Símbolo | Valor | Unidade |
IT(RMS) | 4.0 | A |
VDRM VRRM | 600 | V |
IGT | 200 | µA |
Parâmetro | Símbolo | Valor | Unidade |
Faixa de temperatura de junção de armazenamento | Tstg | -40 ~150 | ℃ |
Faixa de temperatura de junção em operação | Tj | -40~125 | ℃ |
Tensão repetitiva de pico em estado bloqueado (T =25℃) | VDRM | 600 | V |
Tensão reversa repetitiva de pico (T =25℃) | VRRM | 600 | V |
Tensão não repetitiva de pico em estado bloqueado por surto | VDSM | VDRM +100 | V |
Tensão inversa de pico não repetitiva | VRSM | VRRM +100 | V |
Corrente RMS em condução no estado ligado (T =60℃) | IT(RMS) | 4.0 | A |
Corrente não repetitiva de pico em condução no estado ligado por surto (ângulo de condução de 180°, F=50Hz) | ITSM | 30 | A |
Corrente média em condução no estado ligado (ângulo de condução de 180°) | IT(AV) | 2.5 | A |
Valor de I2t para fusão (tp=10ms) | I2t | 4.5 | A2S |
Taxa crítica de subida da corrente em condução no estado ligado (I =2×IGT, tr ≤ 100 ns) | dI/dt | 50 | A/μS |
Corrente de pico do gate | IGM | 1.2 | A |
Dissipação média de potência no gate | PG(AV) | 0.2 | W |
Símbolo | Condição de teste | Valor | Unidade | |
IGT | V =12V R =140Ω | MÁX. | 200 | µA |
VGT | MÁX. | 0.8 | V | |
VGD | VD=VDRM Tj=125℃ R=1KΩ | MÍN. | 0.1 | V |
IL | IG=1.2IGT | MÁX. | 6 | mA |
IH | IT=50mA | MÁX. | 5 | mA |
dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | MÍN. | 15 | V/μs |
CARACTERÍSTICAS ESTÁTICAS
Símbolo | Parâmetro | Valor (máx.) | Unidade | |
VTM | ITM = 8,0 A tp = 380 μs | Tj = 25℃ | 1.8 | V |
IDRM | VD = VDRM VR = VRRM | Tj = 25℃ | 5 | μA |
IRRM | Tj = 125℃ | 1 | mA | |
Resistências térmicas
| Símbolo | Parâmetro | Valor (máx.) | Unidade |
Rth(j-a) | junção ao ambiente | 60 | ℃/W |
Rth(j-t) | Junção ao terminal (CC) | 20 |
Esquema de informações para pedido
